| MOQ: | 5 Pieces |
| 가격: | $0.40 - $35.00 / Piece |
| 표준 포장: | Plywood Case: 1500 x 1000 x 1000mm (Max.) 20 feet container: 25 tons (Max.) |
| 배달 기간: | It depends on the quantity to be ordered. |
| 지불 방법: | by T/T or L/C,Western Union |
| 공급 능력: | 100,000.00 |
| Attribute | Value |
|---|---|

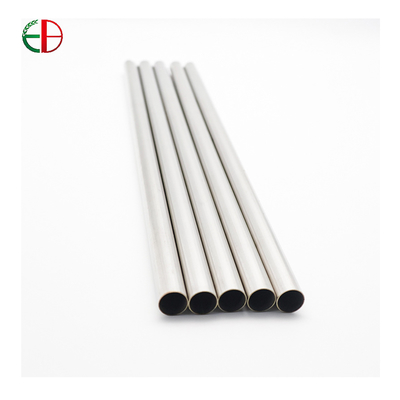

| Product Name | Titanium Tube |
| Material | Titanium |
| Standard | ASTM B338 |
| Size | Customize |
| Density | 4.54 g/cm3 |
| Advantage | High Performance |
| Application | Industrial, Chemical Industry |
| Appearance | Silvery |
The titanium seamless tube shall be made from hollow billet by any cold drawing or cold reducing process with a continuous periphery in all stages of manufacturing operation. The titanium welded tube shall be made from annealed, flat-rolled plates by an automatic arc-welding or other welding process.
Titanium welded tubes and pipes can be used in:
| Grade | Fe% | C% | N% | H% | O% | Al% | V% | Mo% | Ni% | Pd% | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gr1 | 0.2 | 0.08 | 0.03 | 0.015 | 0.18 | -- | -- | -- | -- | -- | BAL. |
| Gr2 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | -- | -- | -- | BAL. |
| Gr3 | 0.3 | 0.08 | 0.05 | 0.015 | 0.35 | -- | -- | -- | -- | -- | BAL. |
| Gr4 | 0.3 | 0.08 | 0.05 | 0.015 | 0.4 | -- | -- | -- | -- | -- | BAL. |
| Gr5 | 0.25 | 0.08 | 0.03 | 0.015 | 0.02 | 5.5-6.75 | 3.5-4.5 | -- | -- | -- | BAL. |
| Gr7 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | -- | -- | 0.12-0.25 | BAL. |
| Gr9 | 0.25 | 0.08 | 0.03 | 0.015 | 0.15 | 2.5-3.3 | 2.0-3.0 | -- | -- | -- | BAL. |
| Gr12 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | 0.2-0.4 | 0.6-0.9 | -- | BAL. |
| Gr23 | 0.3 | 0.08 | 0.03 | 0.015 | 0.13 | 5.5-6.75 | -- | -- | -- | -- | BAL. |
